编号：CDUT-2023-42

标题：A new TiAlSiN coated tool and its machining performance evaluation for milling difficult-to-machining materials under MQL conditions

入藏号：WOS:001030428800001

中国科学院文献情报中心期刊分区：工程技术2区（2022）

本校作者：张雨；刘念聪*；李星锋；郑远烊；伍龙；何滔；夏华政

来源出版物：Journal of Manufacturing Processes卷：101 页: 589-599

出版年：2023

第一地址：成都理工大学

关键词：TiAlSiN coating; MQL; Milling force; Tool wear; Surface roughness

代表图：

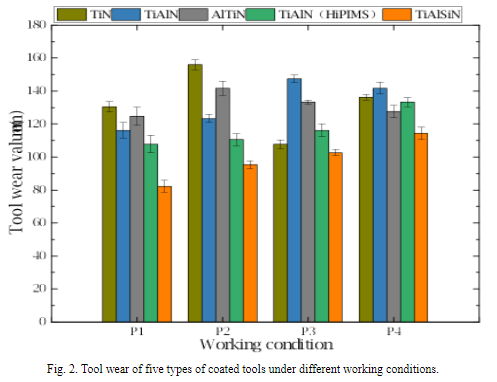

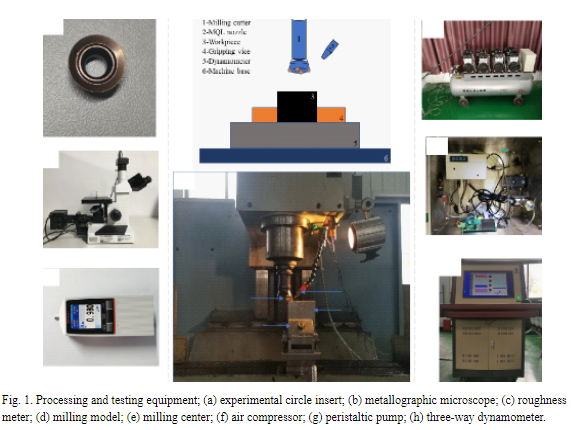

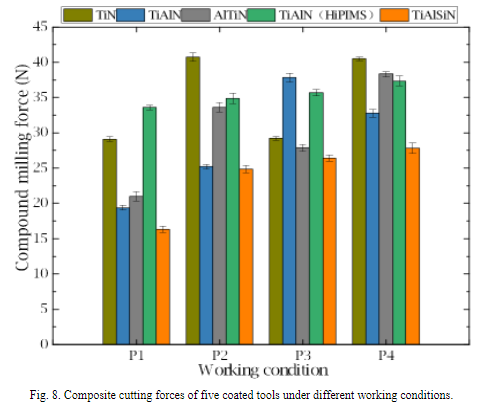

摘要：In this study, the Si and Al contents in a coating composition were improved, and a new TiAlSiN-coated tool was fabricated using high-power pulsed magnetron sputtering (HiPIMS). For comparison purposes, four types of coated tools, typically used in the market, were selected to mill 304 stainless steel in a minimum quantity lubrication environment. To evaluate the machining performance of the tools, the criteria of tool wear, workpiece surface roughness, and milling force were considered. The machining performance of the TiAlSiN-coated tools remained stable for all four working conditions, and it had the smallest compound milling force and tool wear in the experiment. The primary wear forms of the tools were coating peeling, oxidation wear, and adhesive wear. Under working conditions 1 and 2, due to the lower initial surface friction coefficient and thermal barrier effect, the workpiece surface roughness of the TiN-coated tools was the smallest, followed by that of the TiAlSiN. However, under inadequate working conditions, because of the good wear resistance of the TiAlSiN coating, it was not rapidly worn. This resulted in a lower average friction coefficient during processing and the workpiece surface exhibited the minimum surface roughness. A comparative analysis of the processing state of the five coatings under four groups of parameters indicated that the TiAlSiN coating had good processing stability, wear resistance, and a low surface friction value. The TiAlSiN-coated tools had better machining performance than the other four commercial-coated tools for 304 stainless steel machining, especially under working conditions 3 and 4.

文章链接地址：https://www.sciencedirect.com/science/article/pii/S1526612523006217?via%3Dihub
