编号：CDUT-2022-28

标题：Identification of outcropping strata from UAV oblique photogrammetric data using a spatial case-based reasoning model

入藏号：WOS:000696913900001

中国科学院文献情报中心期刊分区：地球科学1区/TOP

本校作者：陈建华；王炳乾；王峰；侯明才；胡作维

来源出版物：NTERNATIONAL JOURNAL OF APPLIED EARTH OBSERVATION AND GEOINFORMATION  卷: 103  文献号: 102450

出版年：2021

第一地址： 成都理工大学

关键词：Stratum identification; Oblique photogrammetric data; Spatial features; Similarity reasoning; Object extraction

代表图：

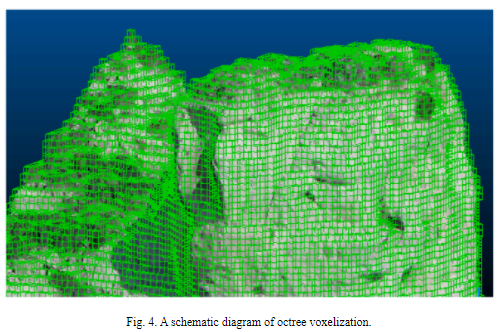

摘要：Due to the large scale and complex terrain of some outcrops, it is difficult to carry out comprehensive and detailed stratum identification using traditional geological methods. The emergence of oblique photogrammetry technology provides a new way to construct high-precision 3D models of outcrops, but the existing object extraction methods of 3D models cannot be applied to the differentiation of strata in an outcrop. Therefore, this paper proposes a novel identification method for outcropping strata from oblique photogrammetric data using a spatial case-based reasoning (SCBR) model. The method includes (a) constructing point cloud of the outcrop based on the photogrammetric data; (b) segmenting the point cloud into voxels; (c) creating an integrated expression of the spatial and attribute features of a stratum case; (d) creating an integrated similarity reasoning model of the spatial and attribute features; and (e) dividing the strata after reasoning. Furthermore, this study carried out stratum identification experiments on two cases of study in Fugu, Shaanxi, China. After Performing the SCBR model, the overall accuracies were found to reach 94%. After the stratum division after reasoning was carried out, the verification accuracies were found to exceed 99%. Based on the results of the manual stratum differentiation, the differentiation results of the proposed SCBR model were found to be much more consistent with the actual situation. The experiments show that the proposed method is very effective for differentiating outcropping strata and provides a new approach for the extraction of 3D objects generated with oblique photogrammetric data.

文章链接地址： https://www.sciencedirect.com/science/article/pii/S0303243421001574
